Purpose：

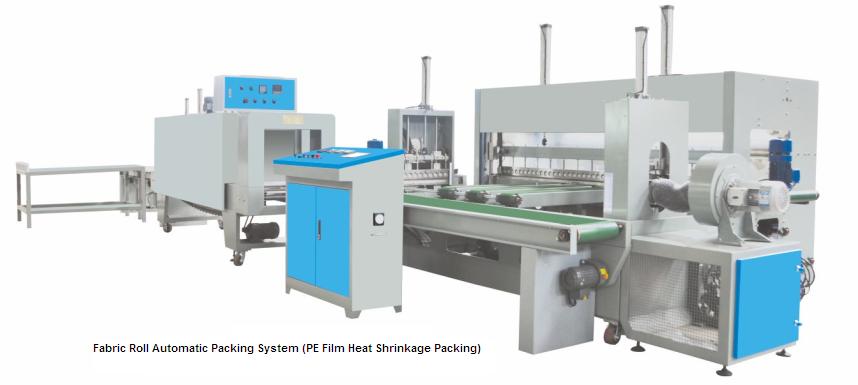

This Fabric roll packing machine is designed to pack fabric roll in vacuum and automatic way

Features：

Main Technological Process of the Packing Engineering

• Accomplishes the rolling and inspecting procedures from the cloth-inspecting and the cloth-rolling.
• Accomplishes the batching and color separation from the cloth inspecting, rolling to the cloth storage conveyor.
• Finishing the cloth-storage engineering is followed by automatic entry into the cloth-belt conveyor;
• The cloth-feeding belt conveyor carries the cloth Into the PE film automatic packing machine for the automatic packing procedure;
• At finishing the packing, the cloth is carried from the middle section belt conveyor to the end section belt conveyor;
• The end belt conveyor carries the packed cloth to the thermal shrinkage machine;
• The thermal shrinkage machine contracts the PE film from all sides to attain a compact and neat packing;
• The cloth exit roller conveyor cools down the finished product after being shrunken and carries the cloth to the cloth storage table.
• The cloth storage table gives a second cooling to the shrunken product and a short time storage on itself for the cloth rolls that are still not stacked, yet

Note: The number of both the cloth feeding conveyor and the storage. Conveyor is subject to the customer' s requirement.

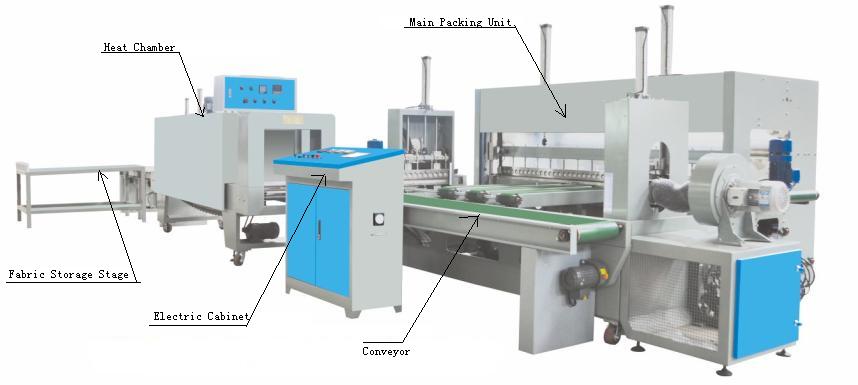

Main Device Layout of the Packing Engineering

• Inspecting-rolling machines:4-8 units
  1 unit of fully automatic PE packing machine
• Cloth-introduction belt conveyors:4-8 units
  Cloth-exit belt conveyor: 1 unit
• Thermal shrinkage machine: 1 unit
  900 rolling conveyance cloth turning machine: 1 unit Cloth turning
  table: 1 unit

For the.-marked items the number of composition depends on the actual need. Each unit of the fully automatic PE packing machine performs a monthly output as much as 8 million metres

Specification:
