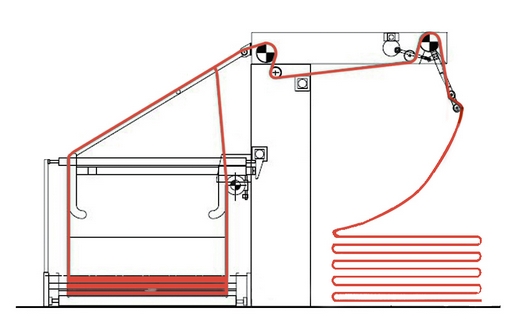

SB-SM-1 allows the cutting and the opening of the tubular raw fabric from roll. The cut on
the fold of the fabric is made by a disk cutter whose position is adjustable in width depending
on the size of the roll. The machine uses a motor with variable speed from 0 to 60m/min.
· Ergonomically designed
· Fast and easily handled, requiring for one operator only
· Fast, cheap and pratical solution
· Synchronize production process
· Reduce administration
Technical Specs. of Suntech Tubular Slitting Machine
|
Model |
SB-SM-1 |
|
Speed |
0-60m/min |
|
Fabric Width |
1.8---4.0m |
|
Electric specification |
Three Phase-380V, 50Hz(can be adjusted to suit for different countries) |
|
Power |
3kw |
|
Remark |
Variable working width is possible and can be tailor made to your requirements of processing needs |
|
For Price Inquiry |
1. What is the fabric type? 2. What is the max fabric width? 3. What is the fabric inlet form? 4. What is the fabric outlet form? |
Excellent Features of Tubular Slitting Machine
1)Aample Fabric Input Control. Fabric input
from free runnig or motor driven rollers for simple and effective control.
2)End of Roll Automatic Stop Sensor- for next roll joining
3)Option: Build with Horizontal Slitting
