Fabric Rolling Machine (For Weaving Loom)
Purpose:
This machine（SB-RM-44） is designed to match with weaving loom or other textile machine to wind fabric into roll type
Detail：

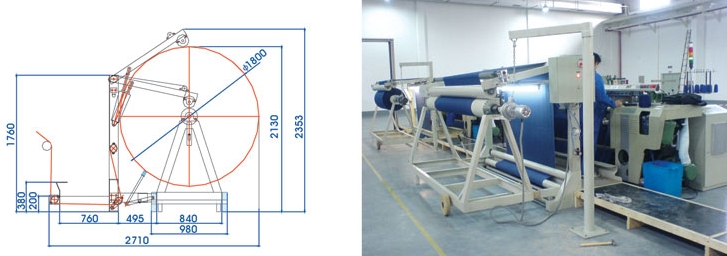

Fabric delivered from the loom wound to the cloth winding role, the winding
speed is auto controlled synchronously with weaving loom, simple operation,
less process procedures and reduced cost; the diameter of wound fabric can be
up to 1800 mm, and also the high quality winding effect can be obtained.
1.Can be completed with any type of weaving machine,
2.Reliable and stable performance of converter adopted to control the winding,
3.The constant tension control is adopted , or the winding diameter is reduced
gradually by proportion (taper control)
4.Easy for the transportation of the cloth roll
5.Suitable for winding of towel fabric, cotton fabric and special fabric (sunlight fabric), automobile inner decoration fabric etc.
Specification
|
Model |
SB-RM-44 |
|
Speed |
Synchronized with Weaving Machines |
|
Fabric Width |
1.8---4m |
|
Max Batching Diameter |
1500mm(Standard 1200mm) |
|
Edge Alignment Error |
≤5mm |
|
Electric specification |
Three Phase-380V, 50Hz(can be adjusted to suit for different countries) |
|
Remark |
Variable working width is possible and can be tailor made to your requirements of processing needs |
|
For Price Inquiry |
1. What is the fabric type? Please inform the weft density and yarn count 2. What is the type of the loom? Water jet loom, air jet loom or rapier loom? What is the loom brand, model? What is the nominal working width and its maximum speed? 3. What is the max fabric batching diameter? |
