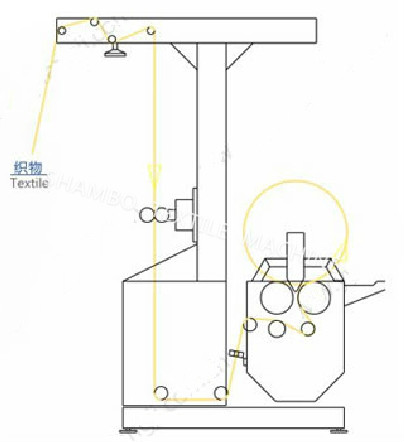

Fabric Winding Machine
Purpose：
SB-RM-1 Fabric Rolling machine is designed to make the fabric into roll type, which is suitable for the woolen mill, cotton textile factory, artificial fur factory, garment factory and dyeing finishing workshop. For all kinds of fabrics for open-width rolling. Input fabric allows folding or round roll type
Features：
- Frequency variation, stepless speed adjustment for controlling the inspection&rolling speed;
- Photoelectric device for automatic edge-alignment;
- The advanced electronic counter mater in china for the counting of the fabric length(amends, determines and totalizes the fabric length in metre, yard as well as displays the rolling speed )
- Pioneered the use of special equipment for roller differential adjust tightness check volume
Specification:
|
Model |
SB-RM-1 |
|
Speed |
0-60m/min |
|
Fabric Width |
1.8---2.4m |
|
Max un-winding Diameter |
800mm |
|
Max re-winding Diameter |
800mm |
|
Dimension(L*W*H) |
1640*2950*2000mm（take example for fabric width at 2400mm ） |
|
Weight |
1400kgs（take example for fabric width at 2400mm ） |
|
Electric specification |
Three Phase-380V, 50Hz(can be adjusted to suit for different countries) |
|
Power |
3kw |
|
Remark |
Variable working width is possible and can be tailor made to your requirements of processing needs |
|
For Price Inquiry |
1. What is the fabric type? 2. What is the max fabric width? 3. What is the fabric inlet form? |
