Fabric Folding and Sewing Machine
Purpose:
This kind of Fabric Folding and Sewing Machine (SB-FM-SM)allows the automatization of selvedge sewing operation of knit fabrics for dyeing. Since lycra is increasingly being used in textile industry, a process of heat fixing of the fabric is required before dyeing. For this reason the raw tubular fabric has to be slit open, heat fixed and then sewn in tubular form again to be dyed.
Technical Specification for Automatic folding and sewing machine:
Model
SB-FM-SM
Doubling Speed
0-80m/min
Sewing Speed
0-30m/min
Fabric Width
1.2---2.4m
Needle Distance
1--5mm(adjustable)
Dimension(L*W*H)
4750*3250*3000mm（take example for fabric width at 2200mm ）
Weight
1500kgs（take example for
fabric width at 2200mm ）
Electric specification
Three Phase-380V, 50Hz(can be adjusted to
suit for different countries)
Power
3.5 KW
Remark
Variable working width is possible and
can be tailor made to your requirements of processing needs
For
Price Inquiry
1. What is the fabric type?
2. What is the max fabric
width?
3. What is the fabric inlet
form?
4. What is the fabric
outlet form?

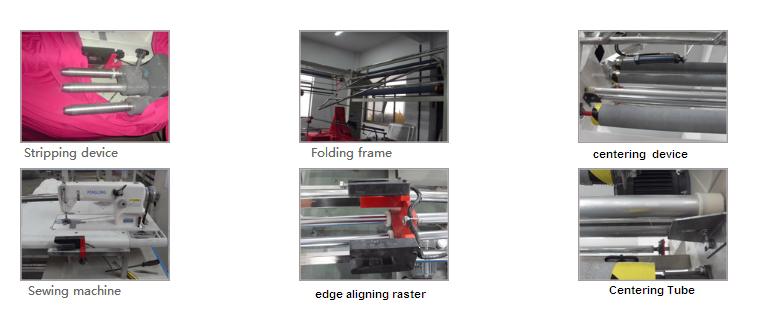

Features for Automatic folding and sewing machine:
1)Doubling, sewing, plaiting any type of fabrics with inlet from plait/ loose fabrics, rolls or batchers.
2)For proper folding, special systems for thin and sensitive fabrics as well as fabrics with curled edges.
3)PLC controlled for synchronized operation.
4)Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide.
5)Sewing carriage with Auto-Search of the fabric-edge.
6)System of motorized drawing to avoid harmful skids for the seam.
7)Reliable measuring with electronic calibrated counter meter system.
