Fabric Inspection and Rolling Machine
Application
SB-IRM-2 Fabric Inspection and Rolling machine is our excellent product by well-designing. It is mainly used in cotton mill, Dyeing-printing factory, Woolen mill, Garment mill, leather factory, Knitted fabric Facroty,non-woven fabric Factory and Commodity Inspection Unit for checking, full--width rolling and measuring of various fabrics.Allow to feeding fabric in rolls or folded shapes.

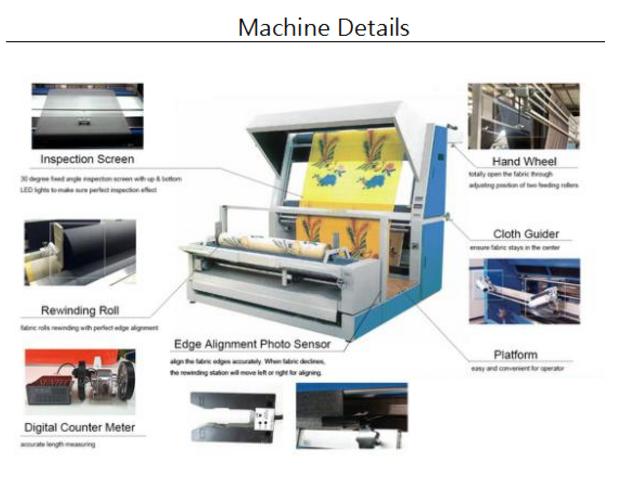

Features
1. Frequency converter controls inspecting and rolling speed; multi-frequency converters control reducer drive, fabric-feeding and re-winding are driven by two independent motors, synchronously adjustable.
2. Photoelectric sensor controls fabric edge-alignment; Frequency converter controls reducer drive.
3.Using domestic advanced Digital Counter Meter (amends,fixed length,measuring and accumulation functions, it can also display the rolling speed )
4. Optional manual or auto-fabric ending cutter
5. Optional electronic scale,when knitted fabrics.
6. Optional selvedge shifting device,when woven fabric.
7. At the middle of the machine there have a platform for operator to operate
Technical Specifications
|
Model |
SB-IRM-2 |
|
Standards |
160/180/220/240 |
|
Fabric Width |
1800-2400mm |
|
Rolls Diameter |
450-500mm |
|
Working speed |
0-90m/min |
|
Table angel |
15°, 25°, 35°, 45° |
|
Edge-aligning error |
≤6mm |
|
Range of Meter counting |
0~9999.9m |
|
Max. error of Counting |
0.5% |
|
Dimensions (L*W*H) |
2120×2520×2120 mm, 2120×2740×2120 mm |
|
Weights |
800Kgs, 1000Kgs, 1100Kgs, 1200Kgs |
|
Electric Specs |
Three phase four wire system 380V AC ,50HZ |
|
Power |
2.5kw~3kw |
|
Remarks |
Other standards can be made according to customer requirements. |
