Fabric Inspection and Rolling Machine
Fabric Inspection and Rolling Machine(SB-IRM-3 Type)
with optional data collection and analysis system

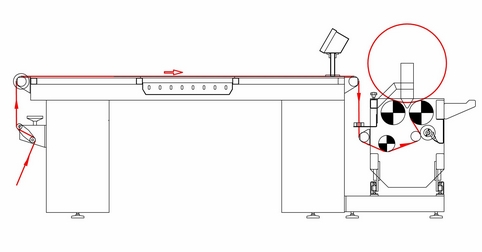

(4-point system) to handle a wide range of fabrics, especially for home textiles. This machine can be supplied to operate from plait/Loose fabrics to roll or with various other fabric inlet and outlet
options.
1)Ergonomically designed
2)Fast and handled, requiring for one operator only
3)improve quality
4)Synchronize production process
5)Provide objective quality reporting
6)Reduce administration
Technical Specs. of Fabric Inspection System
|
Speed: |
0-60m/min |
|
Fabric Width: |
Ideal for home textile with width less than 1800mm |
|
Standard Roll Diameter: |
500mm |
|
Dimention(L*W*H): |
3000*2200*1300mm (for model width 170 only) |
|
Weight: |
700kg (for model width 170 only) |
|
Electric Specs: |
3Phase-380V; 50HZ(can be adjusted to suit for different countries) |
|
Remark: |
Variable working width is possible and can be tailor-made to your requirements of processing needs. |

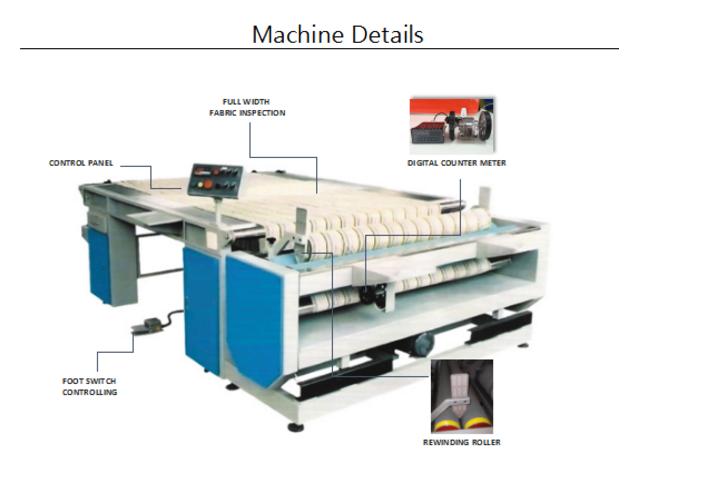

Excellent Features of Machine for Fabric Inspection
1)Full width fabric inspection with fixed flat inspection screen, fabric can be checked under different views and light options.
2)Accurate fabric length and optional weighing machine.
3)Accurate fabric edge controlling, edge alignment photo-sensor for perfect roll generation.
4)Consistent roll output with twin rewinding roller and roll hardness adjustment.
5)Automatic adjustment tension of fabrics when inspecting and rewinding.
6)Foot switch is used to start or stop machine flexibly during checking.
7)Linear fabric roll end cutter for full width cutting at the end of processed roll, fast and accurate.
