Fabric Inspection and Rolling Machine
Product Feature

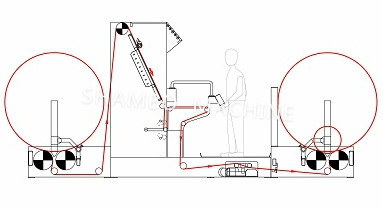

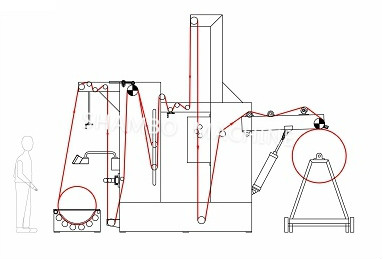

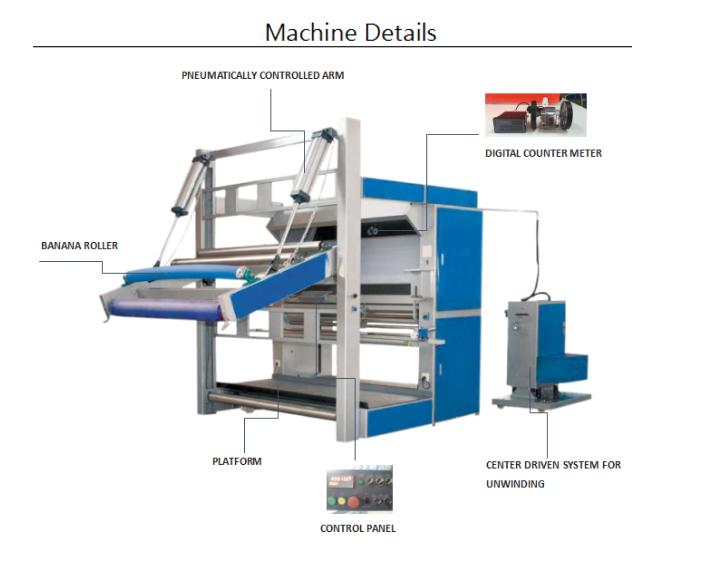

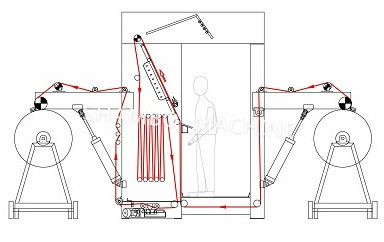

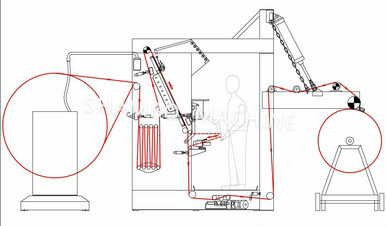

This kind of inspection and rolling machine is unwound by Center Driven System and rewinded by surface contact peripheral drive roller, with inspection function for grey fabric from A-frame batch to A-frame or roll to A-frame.
*Ergonomically designed
*Fast and easily handled,requiring for one operator only
*Improve fabric quality
*Synchronize production process
*Provide objective quality reporting
*Reduce administration
Technical Specs.
|
Model |
SB-IRM-4 |
|
Speed |
5-40m/min |
|
Fabric Width |
1.8---4.0m |
|
Max un-winding Diameter |
500mm |
|
Max re-winding Diameter |
500mm |
|
Dimension(L*W*H) |
4800*3100*3000mm（take example for fabric width at 1800mm ） |
|
Weight |
1250kgs（take example for fabric width at 1800mm ） |
|
Electric specification |
Three Phase-380V, 50Hz(can be adjusted to suit for different countries) |
|
Remark |
Variable working width is possible and can be tailor made to your requirements of processing needs |
|
For Price Inquiry |
1. What is the fabric type? 2. What is the max fabric width? 3. What is the fabric inlet form? 4. What is the fabric outlet form? |
