SB-IM-2  Tubular Fabric Checking Machine is specially designed for easy and efficiently inspect to both sides of tubular fabric in single pass operation. The Fabric is loaded and pass to the fabric checking box, through two mirrors, the operator can easily check both side of Fabric. This machine can be supplied to operate fabrics from roll to roll or plait, or with various other fabric inlet and outlet options.

• Ergonomically designed.
• Fast and easily handle, requiring for one operator only.
• Improve fabric quality
• Synchronize production process
• Provide objective quality reporting
• Reduce administration

Technical Specs. of Fabric Inspection Machine

1)Fabric rolling drawer, with upper delivery mode lessen fabric tension and more convenient for

inspection.

2)The inspecting speed controlled by inverter as requirement.
3)High voltage Dispenser for lightening system. This special device provides electricity Power to

the Fabric Checking Box wireless.
4)Multi-size inspecting lightening cabinets from width 18''~48'' for requirements of various fabric.

This special Box installed Magnetic Block in the bottom to suspension automatically against the

roller to eliminate crease marks to fabric.

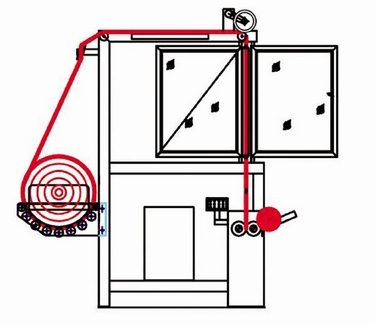

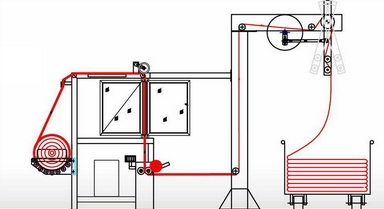

5)Two modes of fabric layout - rolling or plaiting for option.
6)Easy Operation Pannel Only few push buttons to run the machine smoothly.
7)Remote Foot Pedal for convenient operation.
