Purpose：

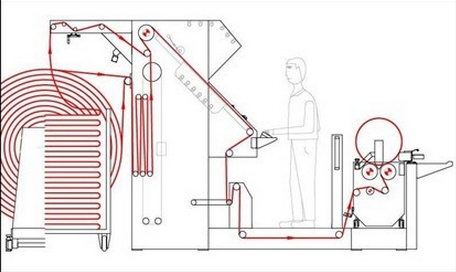

SB-IRM-5 FABRIC INSPECTION AND ROLLING MACHINE is mainly used in the textile, dyeing factories, and other units, inspect various fabric in full width synchronously, with constant tension by directly linking the large fabric roll (including A-frame)to the power unit of the machine.

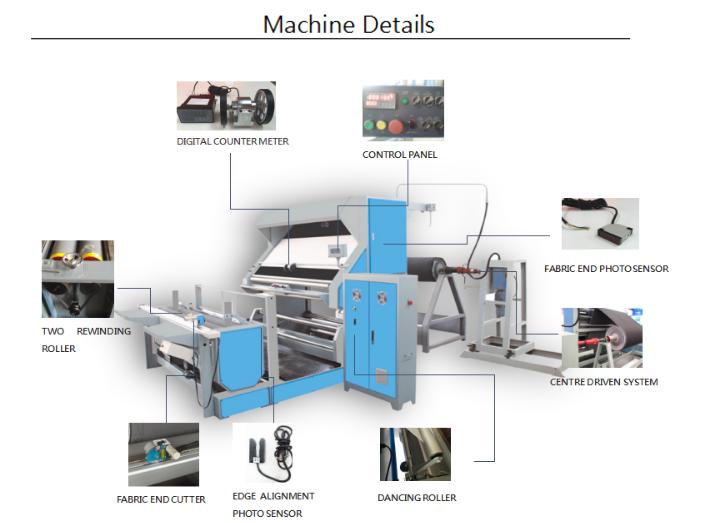

Features：

• Photoelectric device for automatic edge-alignment
• Frequency steeples speed regulation
• The advanced electronic counter meter in China for the counting of the fabric length (amends, determines and totalizes the fabric length in metre, yard as well as displays the rolling speed)
• Fitted with an electronic device for the counting of the diverse defects, which is helpful to statistics and classification of fabrics
• Pioneering system-a roller speed differential device for free adjustment of the tension of the fabric rollers
• May be optionally fitted with imported or China-made auto cutter
• May be optionally fitted with imported or China-made length and defect point printer

Specification:

Note:worlding width can be up to 4,000mm
